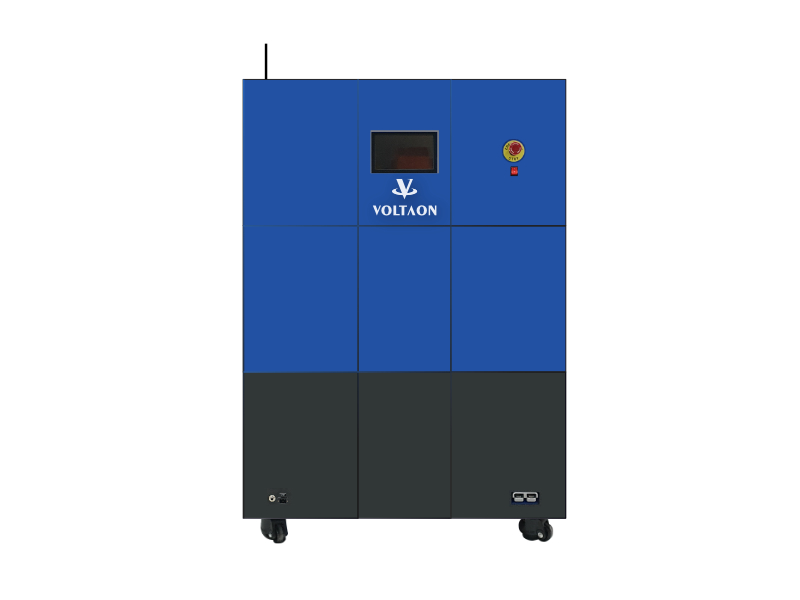

VTD-1000S100
EV Battery Discharger
(Up to 1000V EV battery pack)
VTD-1000S100 provides electrical discharge for
battery capacity verification and recycling disposal
within battery voltage range 1000V
Description
Specification
Description
EV Battery Discharger
VTD-1000S100 provides electrical discharge for
battery capacity verification and recycling disposal
within battery voltage range 1000V
Specification
| Input Power Specification | |
|---|---|
| Input Power | AC 200V 240V |
| Input Frequency | 50Hz/ 60HZ |
| Input Phase | Single-phase |
| Discharge Function | |
| Discharge voltage range | DC 1000.0V ~ 2.0V |
| Discharge current range | 100.0A ~ 0.1A (Constant-Current) |
| Voltage/current accuracy | Current : ±1.0% (@1000V) Voltage : ±5.0% (@100A) |
| Voltage/Current unit | Current : 0.1V Voltage : 0.1A |
| Discharge data save method | USB memory stick, PC control & Cloud system |
| User interface | |
| Display | 8-inch TFT touch LCD |
| Input interface | Touch screen |
| LCD Indicators | – Set voltage and current – Active voltage and current – Discharge graph |
| Alarm (Notice on display screen) | – Battery connection – Reverse battery electrode |
| External control port | – Bluetooth(wireless) – Cable RS-232 – PC program control |
| Accessory | |
| Output cable | 50mm2 x 3.5m, SB-175 |
| Operation Environment | |
| Operating temperature | 0°C 50°C (32°F 122°F) |
| Operation humidity | 5% 90% RH |
| Equipment instrument information | |
| Dimensions | 1,320 × 715 × 1795 mm |
| Weight | 480 Kg |
